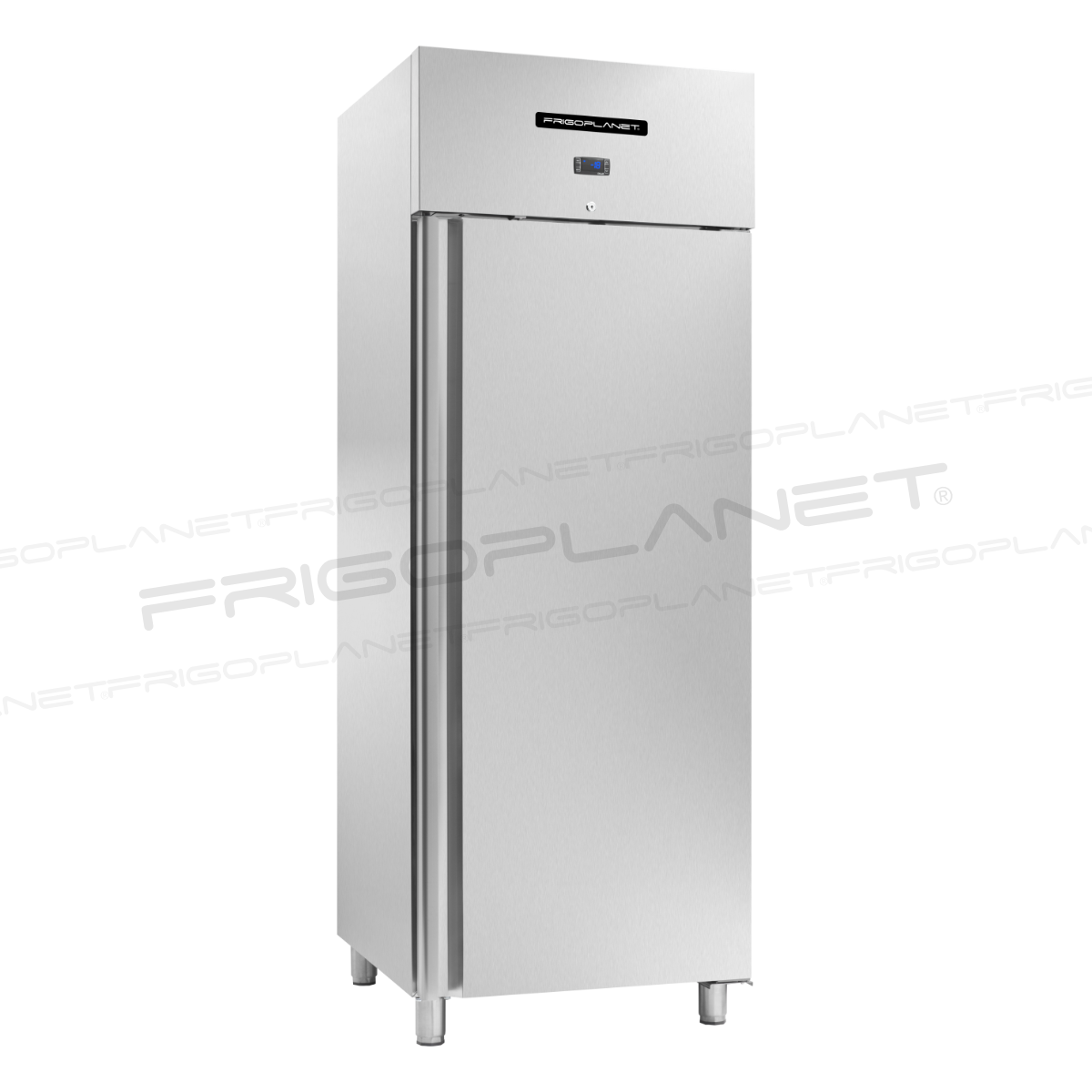

AKT702BTS
Ventilated refrigerated GN2/1 cabinet
- Stainless steel external and internal structure

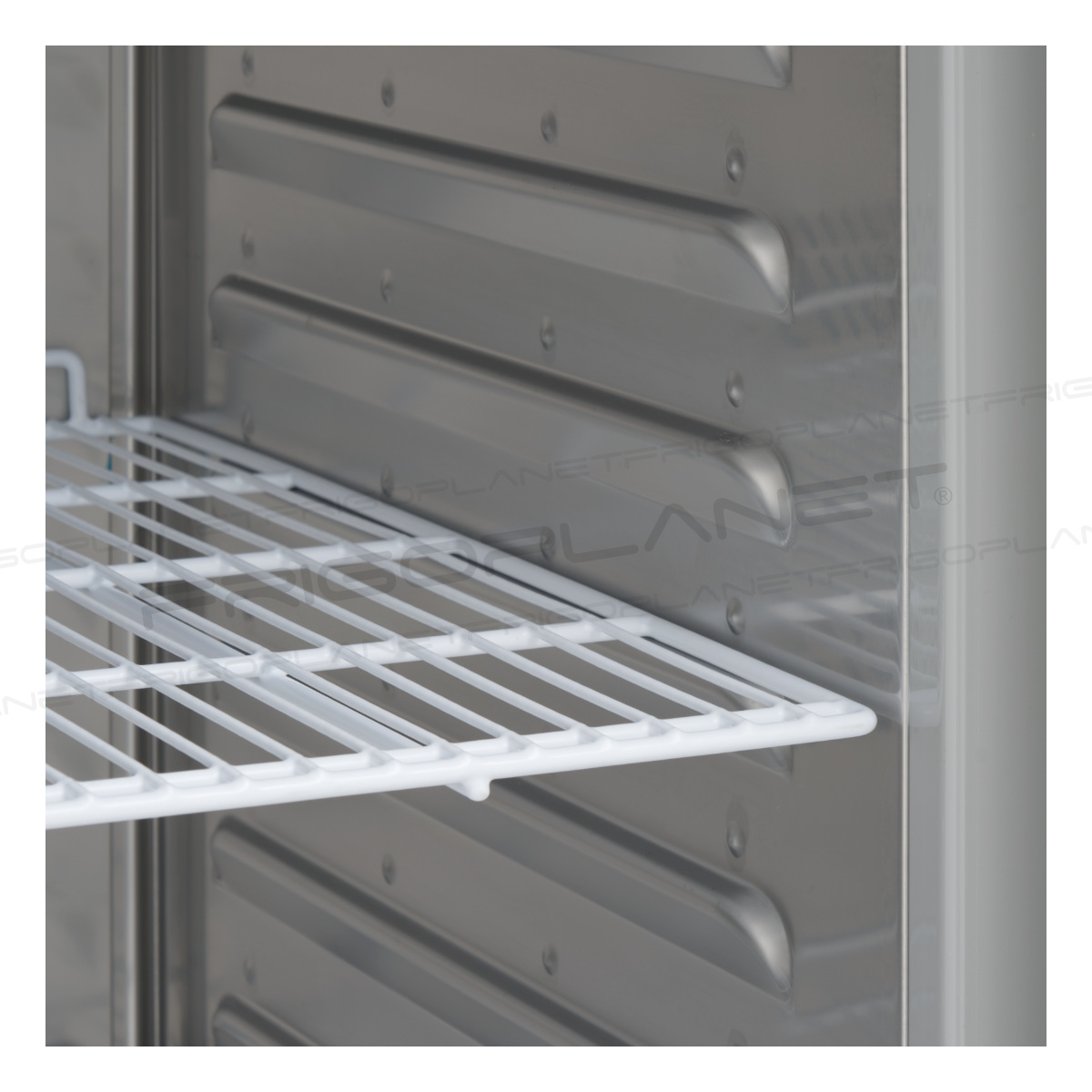

- Chamber sides with moulded shelves guides
- 15 moulded shelves guides with interaxis 80 mm
- Ventilated refrigeration with incorporated refrigeration unit
- Digital control unit
- Door frame with thermal break
- Automatic defrost
- Automatic condensation evaporation
- Reversible door
- 100 mm insulation thickness
- Door with ergonomic handles
- Easily removable magnetic gasket
- Internal rounded edges
- Internal LED lighting
- Door with key lock
- External bottom and back panels in galvanized steel
- Adjustable stainless steel feet

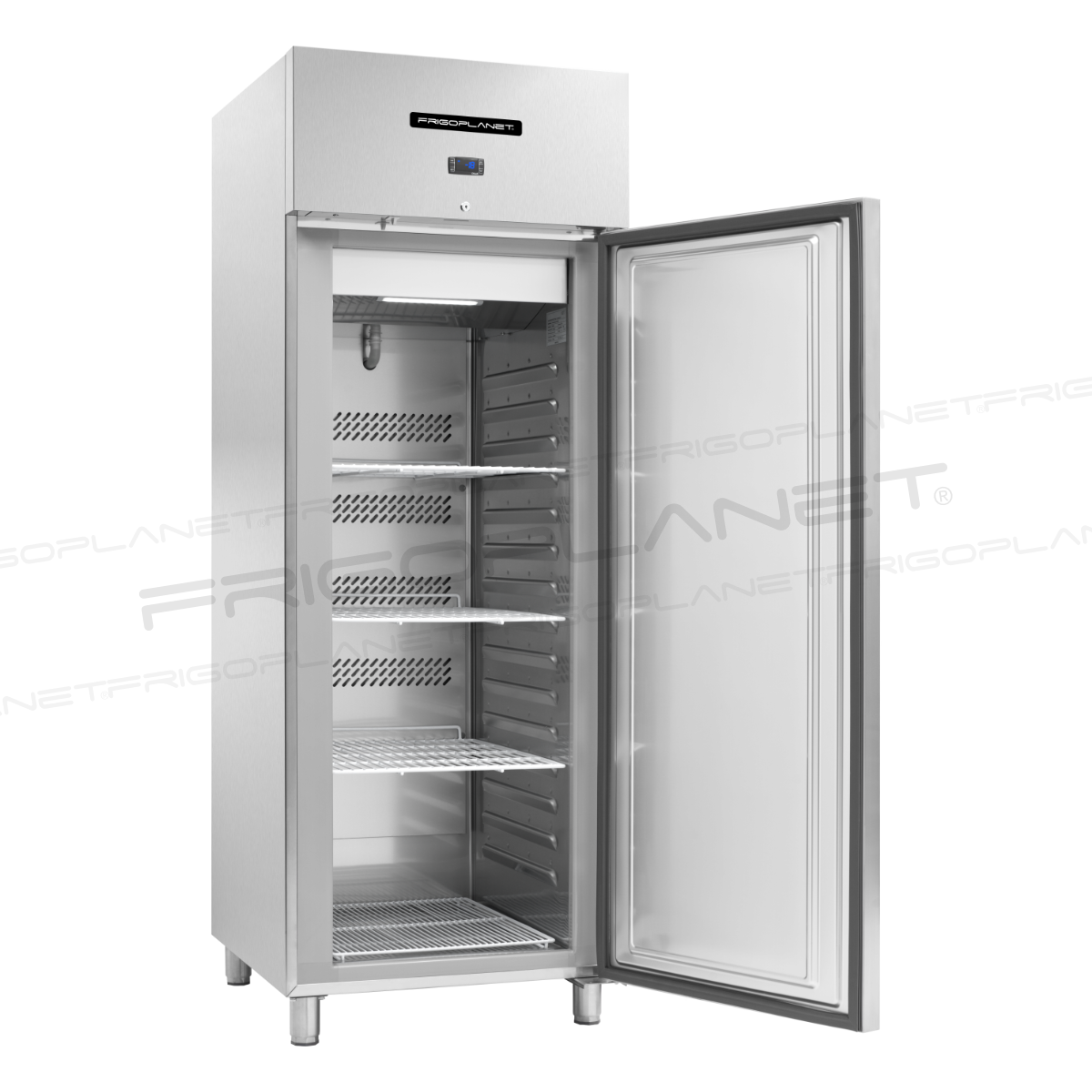

- Equipped with 3 530x650 mm shelves
- Equipped with 1 510x610 mm bottom shelf
- 4 casters kit (2 of which with brake) model RBA4 available on request
Technical features
| Model | AKT702BTS |
|---|---|

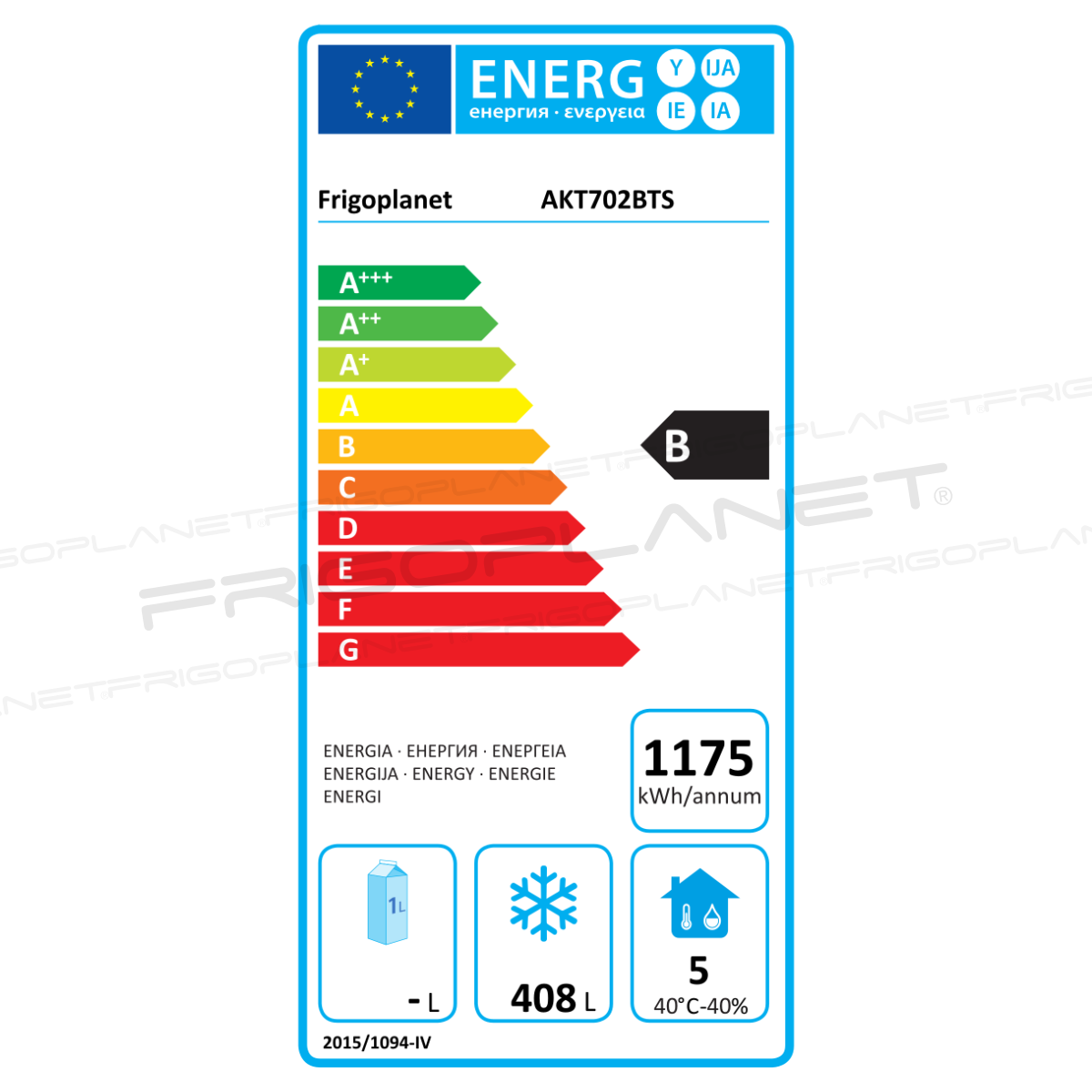

| Energy Class | B (2015/1094/UE) |
| Climate Class | 5 |
| Power Watt | 380 |
| Power supply | 230/1N/50 |
| Temperature °C | -18 ÷ -22 |
| Refrigerant | R290 |
| Max. Temp. / Humidity | +40 °C / 40% HR |

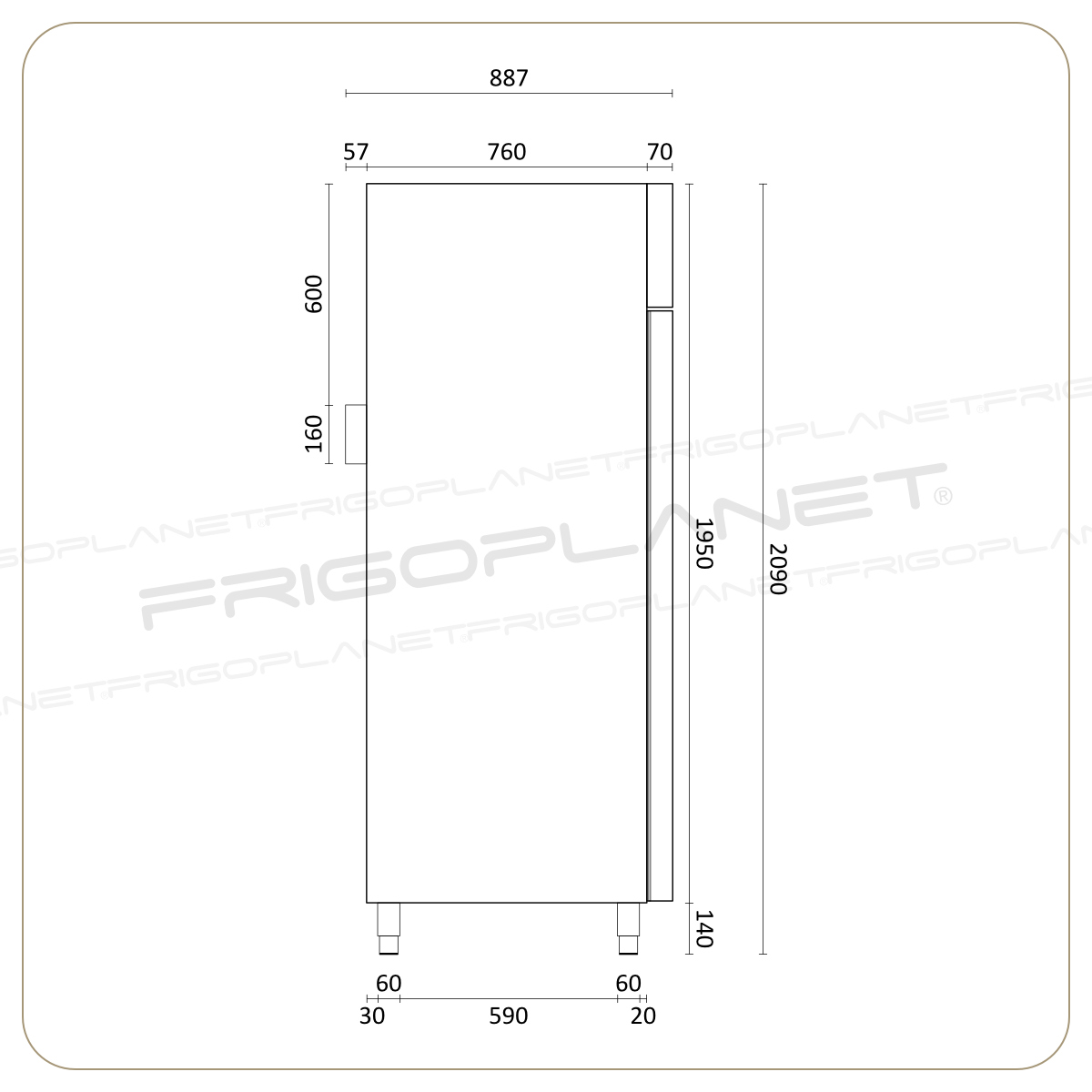

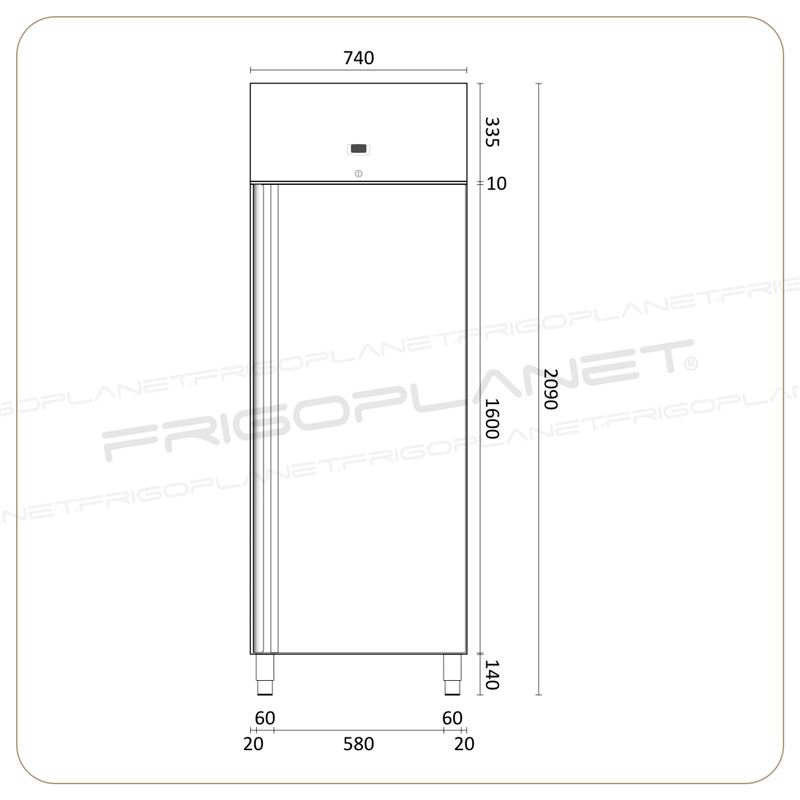

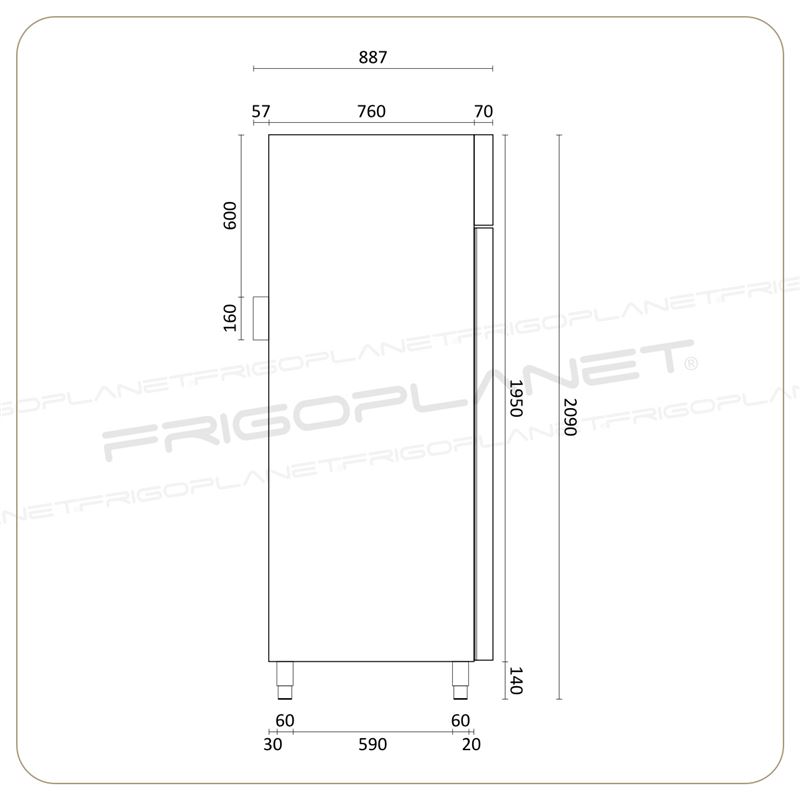

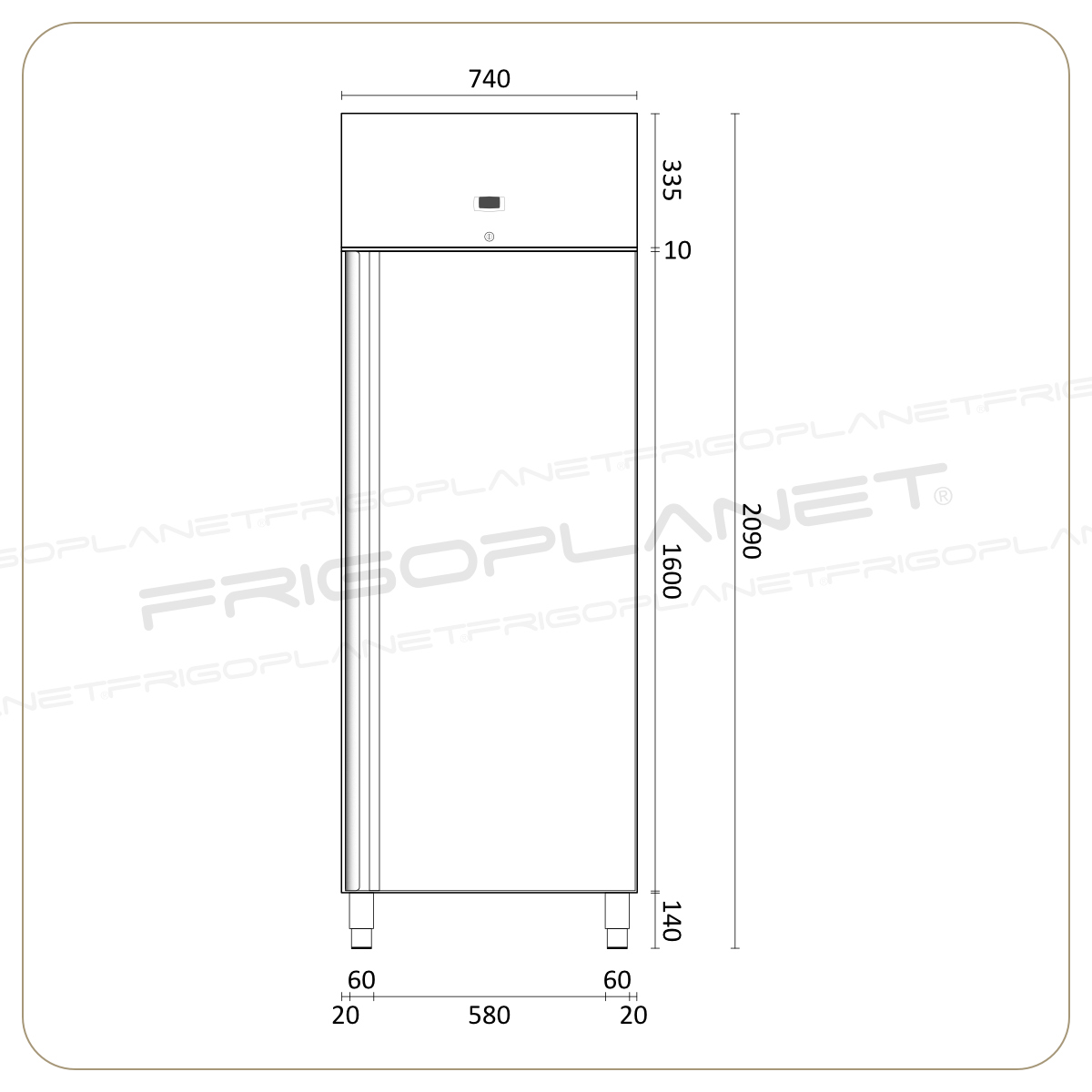

| Dimensions mm | 740x887x2090h |
| Internal dimensions mm | 510x680x1380h |
| Capacity L | 560 |
| Shelves no. and type | 3 x 530x650 mm 1 x 510x610 mm |
| Net weight kg | 123 |
| Gross weight kg | 140 |
| Packing dimensions cm | 76x91x215h |
